Powder Filling Stopping and Capping Machine for 2-500g

FOB Reference Price:Get Latest Price
$12,999.00 - $15,999.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bottles
Packaging Material:
Glass
Type:
Filling Machine, Powder filling machine
Condition:
New
Application:
Medical
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Power:
1.2kw
Place of Origin:
China
Brand Name:
SINOPED
Model Number:
SNFMG-60
Dimension(L*W*H):
1400*1000*1450 mm
Weight:
380kg
Certification:
CE ISO
Material of Machine:
Stainless Steel
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case
Port
shanghai seaport
Lead Time :
45 days
Brief introduction

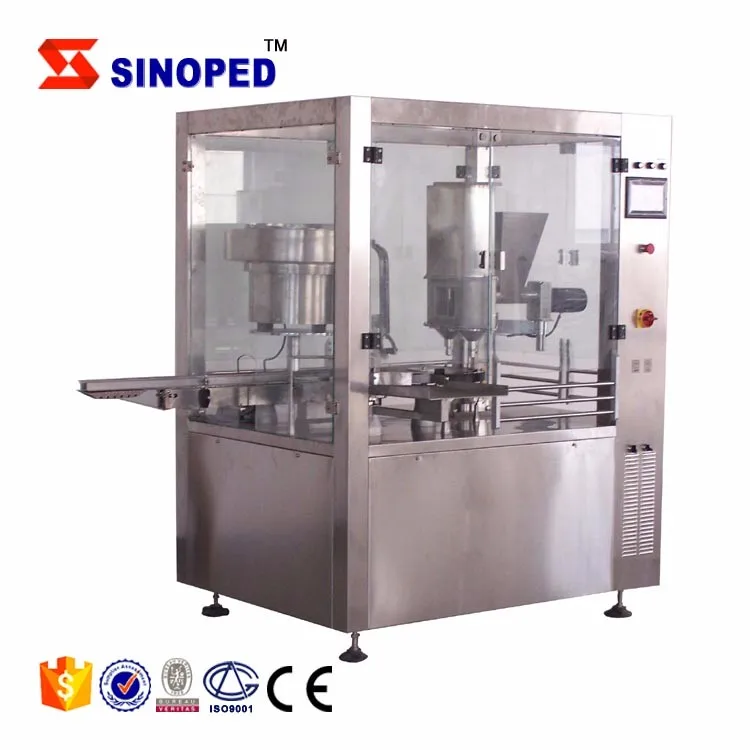

SNFMG-60 Micro Computer Single Head Powder Filling and Stoppering Machine
SNFMG-60 micro-computer double head powder distributor is suitable for distributing powder products for medium and large drug factory,such as antibiotics,biochemical drugs,with automatic stoppering function.
This machine is suitable for molded and tube glass bottle with diameter of 22,24,30mm.Machine can be customed according to different bottle size.
Bottle: GB2640《Tube Antibiotic Glass bottle》、GB2641《Molded Antibiotic Glass Bottle》standards.
Rubber stopper: HG4-559《Antibiotic Rubber Stopper》Standards.

Characteristics:

1. Advanced control: Imported PLC stepper motor,high reliability,high speed calculation.
2. stepless speed adjustment: Taiwan Inverter,stable speed adjustment
3. Correct filling volume: Highly accurate three-phase hybrid stepper motor,high force moment,step angle:0.72
4. High working efficiency: filling,stepper unscrambling,stoppering can be done by one machine.
5. Compliant to GMP standards: material contacting parts are made of stainless steel.
6. Easy dismentling and installing: Distributor head can rotate horizontally,only screaw driver is needed for cleaning.
7. Easy adjustment: powder feeding device can be adjusted horizontally,input volume number to control filling work.
8. Parameter storage: stored parameters are memorized after each change of parameters,,avoiding the trouble for resetting the parameters.
9. Self-control powder feeding: Inside hopper there is highly sentitive sensor,can automatically controls the material volume.
10. Easy cleaning: Table parts are installed with volumes,sealed with sealing rings,they can be cleaned with water.
11. Bottle feeding protection—Machine can automatically stop once there is reversed bottle or insufficient bottle to prevent bottle blocking.
12. Bottle feeding plate is activated by independent motor in case the bottle is reversed caused by rotating too fast.

Product Description
Technical Parameters
Capacity
60-80 bpm
suitable filling volume
30-130 gram
Powder filling head
1
Stopper head
1
Capping head
1
motor power
0.37KW
total power
1.2KW
accuracy
≤±3%
power
single phase220V 50Hz
overall dimension
1400×1000×1450 mm
weight
about 380 kg

There will no further notification if the appearance or parameters of our products are modified. Thanks.

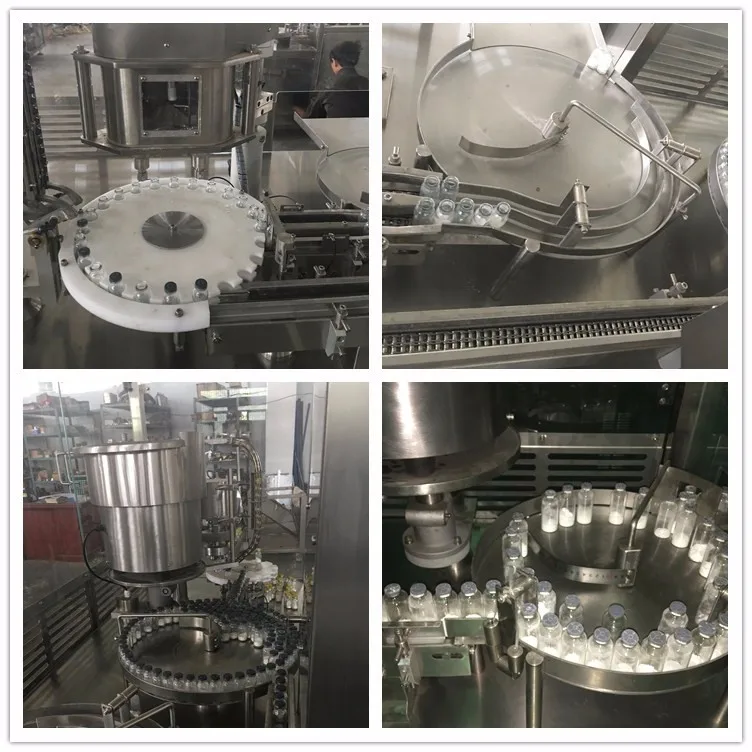

Detailed Images
Other Products

Why choose us?

1. SINOPED has been engaged in the purification technology and application. And we have the R&D team, performing continuous product research and improvement from time to time.
2. Our products are certificated by the most prestigious national and international institutes.
3. Each procedure of the production process is conducting under the strict quality control system. Our QC inspects each lot of the incoming material and the finished products carefully, so that we can supply the best products for customers.
4. From the design to the producing, each procedure is controlled strictly, so we can control the product costs optimally, and offer products with the best quality and the most competitive price. Win-win is our ultimate purpose.

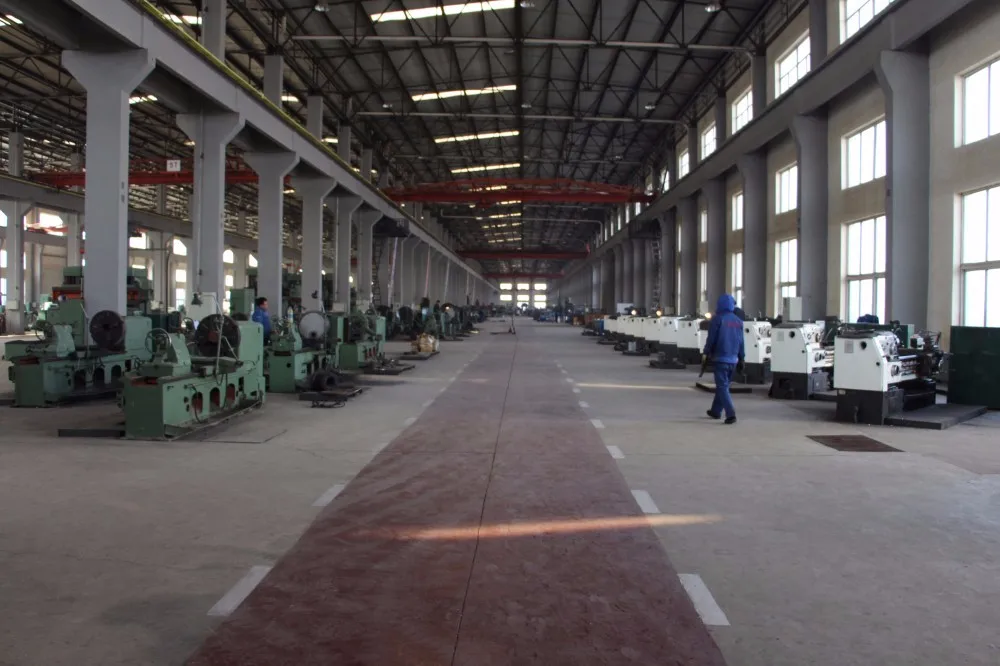

Our Company

Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.

Packing & Delivery
Feedback
Our Service & FAQ

One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.

1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer’s need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba’s trade assurance service, or by the West Union, or in cash.
4. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the machine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba’s trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
