Best wholesale websites box packing automatic blister cartoning machine

  • 1 - 2 Sets
    $35,000.00
  • 3 - 4 Sets
    $31,000.00
  • >=5 Sets
    $28,000.00
Power:
0.75kw
Model Number:
JDZ-120
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles
Packaging Material:
Wood
Type:
Multi-Function Packaging Machine
Applicable Industries:
Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops
Function:
Filling, Wrapping, Labeling, Coating, Sealing, Boxing
Packaging Type:
Case
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/50Hz
Place of Origin:
Liaoning, China
Brand Name:
SINOPED
Dimension(L*W*H):
3100*1100*1550mm
Certification:
ISO
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:
High-accuracy
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export Wooden Case
Port
Each Port In China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description

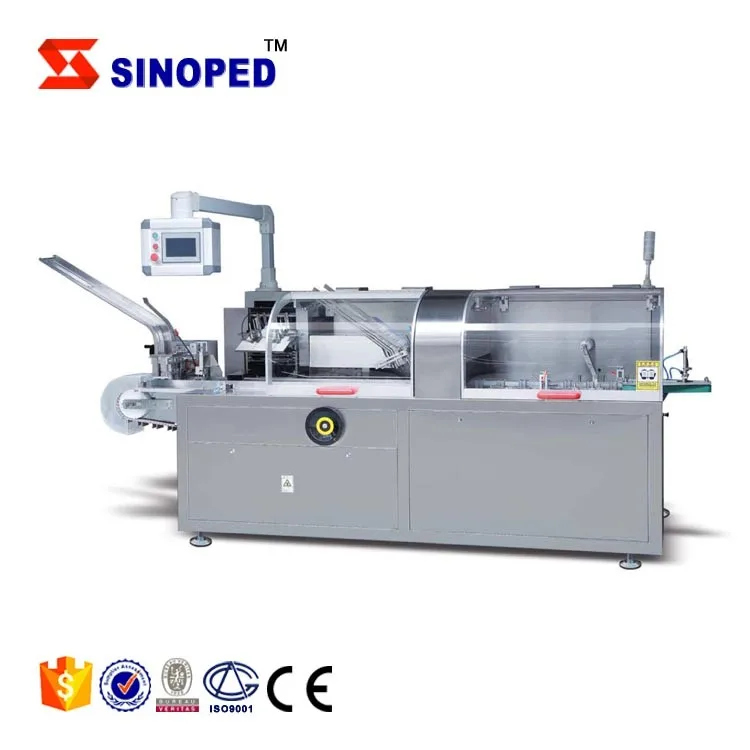

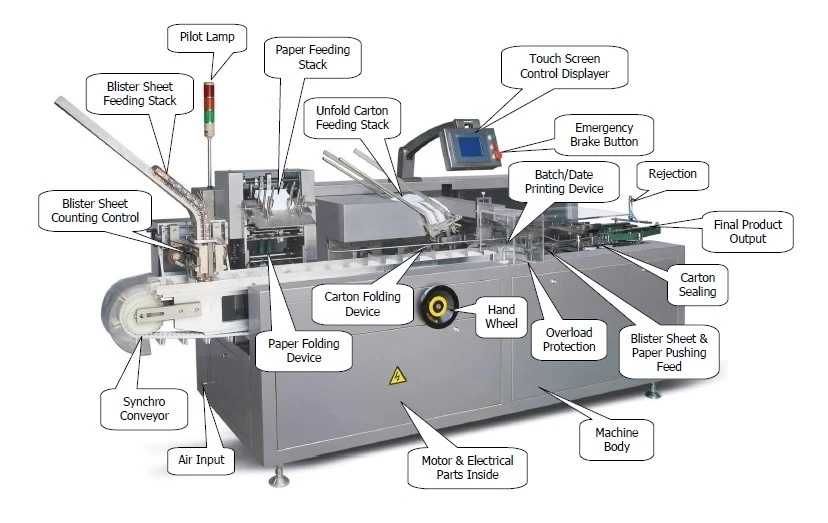

Product Description
This equipment is new model developping base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine is suitable for blister package product, adjust automatic feeding structure conveniently, setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1-4folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or prodcut and finished product out.
Features:
1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2. Adopt human-machine operation system.
3. Automatically stop when machine is overload.
4. Automatically reject lacking of package product and leaflet.
5. Automatically display trouble, alarm and count finished products.
6. Stable performance,operation is easy.
Technical Parameters
Model
JDZ-120
Encasing speed
30-120 boxes/min
Carton quality requirement
250-350g/m 2 (Based on carton size)
Carton dimension range
L: 70-180mm, W: 35-85mm, H: 14-50mm
Leaflet quality requirement
60-70 g/m 2
Unfolded leaflet specification
(80-250)mm*(90-170)mm
Fold range
1-4 folds
Working air pressure
0.6MPa
Air consumption
120-160 L/min
Voltage
220V, 50Hz
Power
0.75KW
Dimension
3100*1100*1550mm(L*W*H)
Weight
1400KG
Details Images
Other Prodcuts
Our Company
Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experie
nced team to manufacture pharmaceutical machinery and equipments and a professional design institute. With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor, fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to o
ur good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Packing & Delivery
Our Service & FAQ

One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.


1. Can your machine meet our need well?
We will supply you a proposal as to your specific requirement,
 and each machine is customized to satisfy customer's need well.
2. Are you a factory or a trading company?
We are the manufacturer, and have been in industry for more than ten years.
3. What's your payment way?
T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash.
4. How c
an you ensure the machine's quality after we put the order?
Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
5. We are afraid you won't deliver us the m
achine after we pay you the money.
Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC.
6. Why choose your company?
We have been engaged in the
 manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
